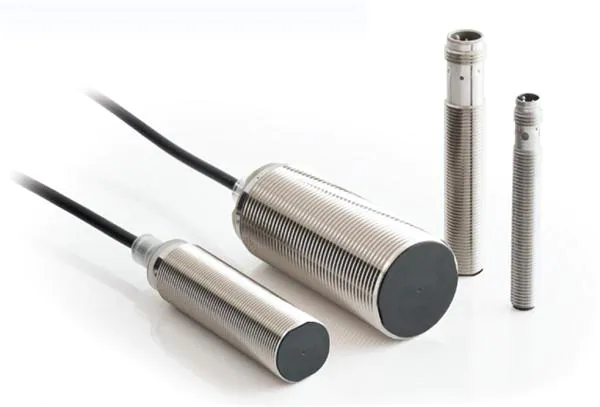

Wide Variation
- “Double Distance” Close at Hand
- Perfect Fit to Your Application Needs
- With no less than 372 models in the family.
- You can choose the one that exactly meets your needs.
- E2B series can save cost & your time via single source.
Reliable Performance
360-degree indication
Easy visibility for 360º even in dark locations so you can mount the sensor in any direction.
* The 360-degree indication is only for Pre-wired Models of M12, M18, and M30.
* The other models (Pre-wired Models of M8 and all the Connector Models) have 4 LEDs at 90-degree intervals, which realize clear visibility from a 360-degree angle.
Specifications :
| Omron | |
| Product Category: | Proximity Sensors |
| RoHS: | N |
| Inductive | |
| 15 mm | |
| Cable | |
| NPN | |
| Barrel Size: | M30 |
| Brand: | Omron Automation and Safety |
| Description/Function: | Sensors are ideal for detecting tool positions or line encoders |
| Maximum Frequency: | 250 Hz |
| Maximum Operating Temperature: | + 70 C |
| Minimum Operating Temperature: | – 25 C |
| Operating Supply Current: | 200 mA |
| Operating Supply Voltage: | 30 V |
| Series: | E2B |
| 1 | |
| Subcategory: | Sensors |
| Part # Aliases: | E2BM30KS15WPC12M |
| Unit Weight: | 65 g |
